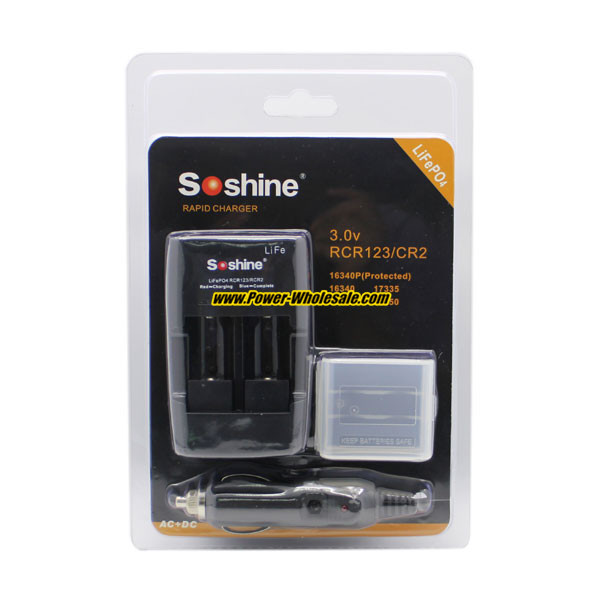

Soshine RAPID CHARGER For LiFePO4 RCR123 CR2 3.2V, dual charger for lifepo4 batteries

RAPID CHARGER

For RCR123  CR2

Model:S5-Fe

This charger is an intelligent charger especially designed to charge for 1-2pcs

LiFePO4  RCR123 / RCR2 / 16340 / 17335  3.2/
LiFePO4  15266P(Protection) / 16340P(Protection) 3.2

Specification:

Input::  12VDC 400mA-600mA

Output:  3.6VDC  300mA*1  300mA *2

Dimensions:L87*W55*H23 mm
Weight:41g

2 pcs Individual LED indicate:

Red  on ------------ Battery Charging

Blue on -------------Charge complete

Turn off  -------------Stand by

Red-blue  flash ---- Non rechargeable Li-ion battery like Lithium, I-MH ,Ni-Cd, Alkaline
                             Low voltage between <1.80V

Feature:

- End-of-charge voltage detection assures the safe and full charge any time

- Short-circuit protection

- Over voltage cut-off protection ----- prevents damage to your battery due to over voltage

- Complete individual channels ------ convenience; prevent 2 batteries charge each other

- Charge Method: CC/CV -------------- Charge battery fully and quickly

- Reverse polarity protection --------- prevent damage to your battery and charger

Charge time:

Not charging all the way?
1 Polarity reversed; Make correct contact for polarity (+ and -) according to the sign in the battery compartment until LED from blue turn red. This charger cannot Polarity Auto Detection

2 Loose connections between battery and charger replace battery into the battery compartment, turn the battery until LED from blue turn red.
3 Use did not rechargeable battery, like Lithium batteries or Ni-MH Ni-Cd battery, this charger only for Lithium Ion batteries, you should change battery.

4 Gently rub battery ends with a clean pencil eraser or cloth to remove any residue, load the battery into charger in right side until LED from blue turn red

Tips:
It is normal for batteries to warm up while charging. They will cool down after they are charged.
If they are not used for more than one year, charge the battery complete.

Warning:
To avoid personal injury and property damage from, but not limited to ,the risk of electric shock or fire:
Charge only rechargeable Lithium-Ion batteries. Charging any other types of batteries may cause them to leak rupture or explode.
Do not disassemble, modify any part of the charger ,or attempt to use the chargers as power source
Always unplug the charger from outlet before attempting maintenance or cleaning,
This charger is not a toy and should not be used by children or infirm persons without adequate training or supervision.

Approval: adapter UL CE EK PSE RoHS

Material: ABS

One year warranty

This Soshine product is warranted only to the original purchaser upon presentation of proof of purchase, to be free from defects in materials and workmanship for one year from date of original purchase provided that no other repairs, alterations or modifications had been attempted by unauthorized personnel. Not applicable to damage caused by normal wear and tear or misuse. Repair or replacement of charger at Soshine option. For more information, please contact your nearest Soshine sales office.

Quality Guarantee:
Power-Wholesale Website is committed to providing you with authentic Soshine battery charger. Every charger sold was tested strcitly and of the highest quality.

• We only sell authentic Li-Ion batteries and chargers.

• Every item is well inspected.

Price:

• We totally understand the price is crucial to a wholesaler, so we will do our best to maximize your profits.

• We won’t ensure you our price is lowest but we ensure you what you paid is the price for authentic battery and charger.

Detail Photos Show:

To know more about Soshine S5-Fe RCR123/CR2 battery charger, please check the official Data Sheet with us by following way:
